Mechanical Seals
Anchor Seals Inc. is a proud distributor of Fluid Sealing International (FSI). FSI manufactures high-quality mechanical seals in the USA in addition to providing unparalleled customer service and custom sealing solutions.
Anchor Seals Inc. supplies mechanical seals for pumps, mixers, and rotating equipment across North American manufacturing, including chemical processing, refining, power generation, steel and metals, pulp and paper, municipal water, and pharmaceutical industries.
Our mechanical seal product line is manufactured by Fluid Sealing International (FSI) in an ISO 9001:2015 registered US facility. Anchor Seals Inc. stocks and distributes four seal families, the 1000, 2000, 3000, and 6000 Series, covering single cartridge pusher, dual cartridge pusher, component cartridge, and metal bellows configurations. All seals are guaranteed free from defects in materials and workmanship. Anchor Seals Inc. engineers provide application support to help select the correct seal series, material, and model for each specific piece of equipment and process condition.
Select Your Series
1000 Series
Mechanical Seals 1000 Series
Single Cartridge Pusher Mechanical Seals in both standard and custom designs.
2000 Series
Mechanical Seals 2000 Series
Dual Cartridge Pusher Mechanical Seals for pump and mixer applications.
3000 Series
Mechanical Seals 3000 Series
Component & Cartridge Pusher Mechanical Seals custom engineered for specific applications.
6000 Series
Mechanical Seals 6000 Series
Single & Dual Cartridge Metal Bellows Mechanical Seals.
Our Quality Guarantee
All Anchor products, including mechanical seals, are designed and manufactured in an ISO 9001:2015 registered facility. We therefore guarantee all our products to be free from defects relating to materials and workmanship.
Due to the varied nature of mechanical seal applications, we cannot guarantee their operation in service unless we have specifically selected a seal for a particular application.
ISO 9001:2015
All mechanical seals are sourced from an ISO 9001:2015 registered facility, ensuring traceable, consistent manufacturing quality.
FSI Partnership
US-manufactured seals with full technical support, engineering resources, and rapid stocked availability.
Defect-Free Guarantee
Every seal is guaranteed free from defects in materials and workmanship, backed jointly by Anchor Seals Inc. and FSI.
Mechanical Seals Selection Guide
Find the right seal series for your industry, equipment, and application.
| Industry | Equipment Types | Applications | Mechanical Seal Types |
|---|---|---|---|
| Chemical Process |
|
|
1030 / 10406030 / 6040 / 60802080 / 2050 |
| Refining & Petrochemical |
|
|
1040 / 6040 / 60902080 / 60803000 |
| Power Generation |
|
|
1010 / 10201030 / 10403000 |
| Steel & Metals |
|
|
3000 |
| Pulp & Paper |
|
|
1030 / 104030002050 |
| Municipal & Water |
|
|
1010 / 10201030 / 10403000 |
| Pharmaceutical & Food Processing |
|
|
1030 / 104020503000 |
Frequently Asked Questions
What is the difference between the 1000 and 3000 Series?
The 1000 Series is a pre-assembled single cartridge pusher seal designed for standard ANSI and DIN pump applications. It covers the broadest range of general service conditions. The 3000 Series is a component-style seal that is custom engineered for a specific piece of equipment, typically in steel mills or other environments where abrasion, contamination, and non-standard geometry rule out off-the-shelf solutions.
When should I specify a dual cartridge seal (2000 Series) instead of a single?
Choose the 2000 Series whenever regulations or process safety requirements prohibit any leakage of the sealed fluid to atmosphere, for example toxic chemicals, hydrocarbons above their flash point, or food and pharmaceutical streams. The tandem or double arrangement adds a second sealing face and a barrier or buffer fluid zone that catches any leakage from the primary seal.

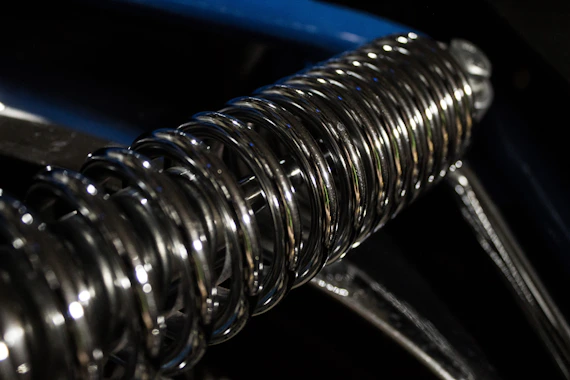

What makes the 6000 Series different from the other series?
The 6000 Series replaces the conventional spring and elastomeric secondary seal with a welded stainless steel bellows element. This eliminates the dynamic O-ring that wears and swells in aggressive or extreme-temperature service. Metal bellows seals are commonly specified for cryogenic service, high-temperature fluids, and strongly corrosive or low-viscosity media that degrade rubber quickly.

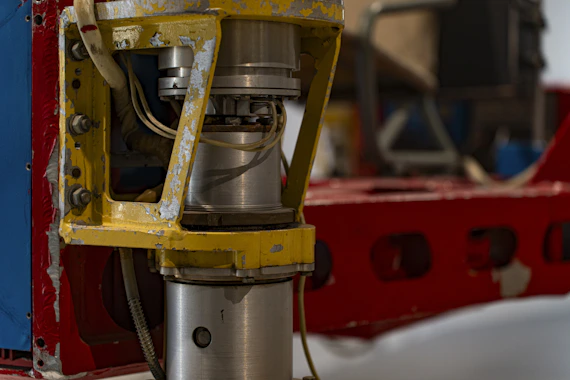

Does Anchor Seals Inc. offer custom or engineered-to-order mechanical seals?
Yes. Through our partnership with Fluid Sealing International, Anchor Seals Inc. can provide custom-engineered seals for non-standard shafts, unusual materials, or extreme service conditions. The 3000 Series is purpose-built for custom applications. Contact our engineering team with your equipment details and process conditions and we will recommend or design the right solution.
How do I know which seal model number is right for my pump?
Use our Selection Guide above as a starting point. It matches industries, equipment types, and process fluids to seal families. For a definitive recommendation, contact Anchor Seals Inc. with the pump manufacturer, model, shaft size, stuffing box dimensions, speed, pressure, temperature, and the fluid being sealed. Our engineers will specify the correct series, model, and material combination.
Are Anchor Seals Inc. mechanical seals manufactured in the USA?
Yes. Anchor Seals Inc. mechanical seals are manufactured exclusively by Fluid Sealing International (FSI) in a US facility that operates under an ISO 9001:2015 registered quality management system. All products are guaranteed free from defects in materials and workmanship.
